Product info

Model:

Efficient curing and drying in the cold

In addition to handling curing tasks related to casting and facades, Zero3 also meets government requirements for zero emissions. Thanks to radiant heating and the fact that we don’t heat the air, significant savings are achieved compared to convection-based heat sources. Tests have shown major energy savings compared to traditional methods.

Heat output/range: 2-4m
Effect 3.0kW (2×1.5kW)
Colour scheme: Stainless steel
Heat dissipation: 5-6m
Distance between units: 3-4m
Operating voltage: 220-240VAC 50/60Hz 1-phase
Element lifespan: 5,000-7,000 hours (nom.)
Replacement element: Product no. SP990543 (1.5kW)
IP rating: IPX5 (splash-proof). Plug IP44
Cable: 0.8m 3G2.5mm² H07RN-F with 16A 6h 2P+E IP44

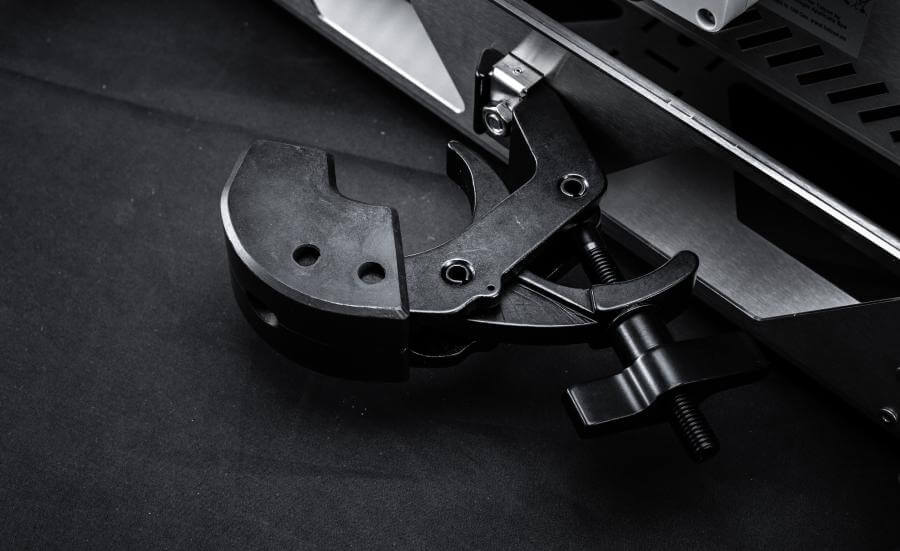

Goal: HxWxD: 260(315*) x 832 x 218(317*)mm *with bracket
Net weight: 9.0 kg
Info: ON/OFF button with power adjustment; 20/40/60/80/100% incl. soft start

Heat output/range2-4m
Effect3.0kW (2×1.5kW)
Colour schemeStainless steel
Heat dissipation5-6m
Distance between units3-4m
Operating voltage220-240VAC 50/60Hz 1-phase
The lifespan of the element5,000-7,000 hours (nom.)
Replacement elementProduct no. SP990543 (1.5kW)
IP ratingIPX5 (splash-proof). Plug IP44
Cable0.8m 3G2.5mm² H07RN-F with 16A 6h 2P+E IP44
GoalHxWxD: 260(315*) x 832 x 218(317*)mm *with bracket
Net weight9.0 kg
InformationON/OFF button with power adjustment; 20/40/60/80/100% incl. soft start

Use cases

Concrete curing, facade heating and construction drying

Features

  • Showerproof heating element: IP rating IPX5
  • Simple assembly and heat adjustment
  • Zero emissions: Safe use indoors and outdoors
  • Instant heat (100% power after 2 seconds)
  • Lower energy loss than traditional solutions
  • Space-saving and easy to move
  • Replaceable element with a massive 5000 hours service life

Concrete mix and water from the concrete mixture could significantly reduce the service life of the heating elements and reflector background.

Therefore, in the planning phase, it might be a good idea to consider the exact placement of the heaters, both in terms of output and to limit unnecessary damage as much as possible.

For example, when casting floor slabs, it would be wise to avoid placing the devices directly beneath cracks where concrete mix or water from the concrete mixture might leak out.

In cases where such placement is unavoidable, it is recommended to take simple measures, such as installing a light steel plate at this exact point so that the leak is diverted past the appliance.

When the heaters have completed their task in the process and are to be dismantled/moved, remember to switch off the appliance using the on/off button so that it is not in an active state when the plug is pulled from the socket.

This is so that sensitive electronics are not damaged by the sudden cut-off of the power supply.

The heating elements of the Zero3 are extremely durable, even when active.
However, as with most things containing components such as heating elements, it is recommended that you wait until these have cooled down before the appliance is moved. In this way, you will be able to avoid unnecessary damage since heating elements are less vulnerable when cold.

The heater is designed to withstand being sprayed with water from all directions, even when in active operation.
For optimal effect and service life, regular cleaning with suitable products is recommended.

As mentioned previously, the heating elements can withstand a lot; cold water on a hot active element is, for example, completely unproblematic, and the water will evaporate without leaving any residue.

What will, on the other hand, reduce the lifespan is if material is left on the glass of the heating element itself. This will lead to such a high temperature that the glass is damaged and eventually cracks.

All people have natural oils in their skin, and to prevent these from transferring to the glass of the heating element, it is therefore recommended to use gloves when handling them.

We assist you with heat planning

We'll be happy to help you with a heat calculation or a product demonstration so you can experience why so many people have switched to Zero3.
